プロダクト細部
起源の場所: 広東
ブランド名: YUSH
モデル番号: YS-G6565
支払及び船積みの言葉
最小注文数量: 1
価格: USD30000
受渡し時間: 20営業日
支払条件: L/C,D/A,D/P,T/T,ウェスタンユニオン
供給の能力: 100
重量: |
500KG |
モデル: |
YS-G6565 |
測位精度: |
±2μm |
レーザーパワー: |
QCW-150W/1500W |
クランプサイズ: |
680mm*720mm |
重量: |
500KG |
モデル: |
YS-G6565 |
測位精度: |
±2μm |
レーザーパワー: |
QCW-150W/1500W |
クランプサイズ: |
680mm*720mm |
Equipment Introduction

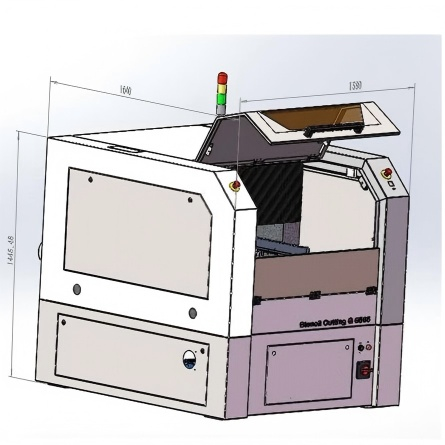

G6565Laser cutting machine is a new generation of laser cutting machine, compared with the previous models in terms of performance or humanized operation design, has been significantly improved. According to the market demand of customers, the overall performance of the equipment has been raised to a new level. While improving the cutting speed, it also ensures excellent cutting quality. The performance and operability are completely comparable to imported equipment, and the cost performance is much higher than imported machines.
Parameter
| Machine Model | YS-G6565 |
| Laser Power | QCW-150W/1500W |
| Laser Wavelength | 1070nm |
| Beam Quality | M²<1.1 |
| Cutting Speed | About 23000 pad/h |
| Working Range | 650mm*650mm |
| Clamping Size | 680mm*720mm |
| Overall Dimension | 1640mm*1380mm*1500mm |
| Cutting Accuracy | ±0.01mm (Specified material) |
| Positioning Accuracy | ±2μm |
| (Repeated positioning accuracy) | ±2μm |
| Cooling Way | Air cooling/water cooling |
| (Auxiliary cutting gas) |
Oxygen 8-10Kg
Compressed air16Kg
|
Product Features
