プロダクト細部
起源の場所: 広東
ブランド名: YUSH

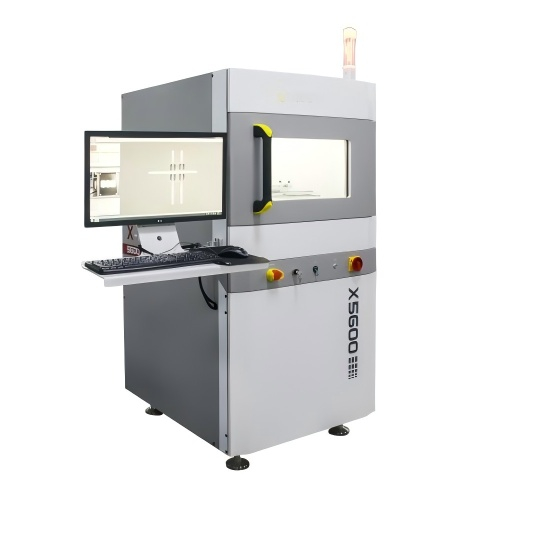

モデル番号: YS-X5600
支払及び船積みの言葉
最小注文数量: 1
価格: USD31940
受渡し時間: 20営業日
支払条件: L/C,D/A,D/P,T/T,ウェスタンユニオン
供給の能力: 100
重量: |
100kg |
モデル: |
YS-X5600 |
電圧範囲: |
40～90kV |
現在の範囲: |
10-200 μA |
視野: |
130mm*130mm |
重量: |
100kg |
モデル: |
YS-X5600 |
電圧範囲: |
40～90kV |
現在の範囲: |
10-200 μA |
視野: |
130mm*130mm |
1.Application:
| 1: Semiconductor | 2: Automotiveelectronics | 3: PCB’A | 4: LED |
| 5: BGA/QFN inspection | 6: Aluminum die casting | 7: Mould | 8: Electrical and mechanical components |
| 9: Biological agriculture seed | 10: Aviation component | 11: Wheel hub | 12: Wire/USB/Plug |
2.Functions and Features:
| Function | Advantages |
| X-ray detector can move along Z direction, Speed of table moving along X-Y direction can be adjusted. | Larger effective detection range, improving the magnification and the detection efficiency of the product. |
| Long life X-ray tube, maintenance free for life | Adopt the world's top Japanese Hamamatsu X-ray source |
| Fault less than 2.5μm can be detected. High detection repeat accuracy. | Easy to distinguish the gold wire bending and break of the semiconductor package. |
| Powerful CNC Measuring Function, can inspect automatically, testing program can be edited. | Suitable for large-scale inspection and improve detection efficiency. |
| Small body, easy to place, less space | Can be used in laboratories, materials rooms, etc. |
| Large navigation view, table will move to where you click the mouse. | Very easy to operate, quickly find item defects and improve detection efficiency |
3.Application Advantage:
4.Automatic Void Ratio Calculation
Enhanced BGA inspection function
YS-X5600 can quickly select and mark a single solder ball, or select the solder balls to be inspected by matrix box ; it can manually or automatically identify BGA solder balls and complete the inspection. Follow the system guidelines to easily complete the inspection process and ensure accurate and reliable inspection results.
5.X-Ray Working Principle
6.CNC Programming
