プロダクト細部
起源の場所: 中国、広東省
ブランド名: YUSH
モデル番号: YS-A410
支払及び船積みの言葉
最小注文数量: 1
価格: USD35000
受渡し時間: 20作業日
支払条件: L/C、D/A、D/P、T/T、Western Union
供給の能力: 1000
電圧: |
220V |
パワー（w）: |
6kw |
重さ: |
310kg |
寸法（l*w*h）: |
868*1033*1340mm |
モデル番号: |
YS-A410 |
電圧: |
220V |
パワー（w）: |
6kw |
重さ: |
310kg |
寸法（l*w*h）: |
868*1033*1340mm |
モデル番号: |
YS-A410 |
| Voltage | 220V |
|---|---|
| Power | 6KW |
| Weight | 310KG |
| Dimensions (L×W×H) | 868 × 1033 × 1340mm |

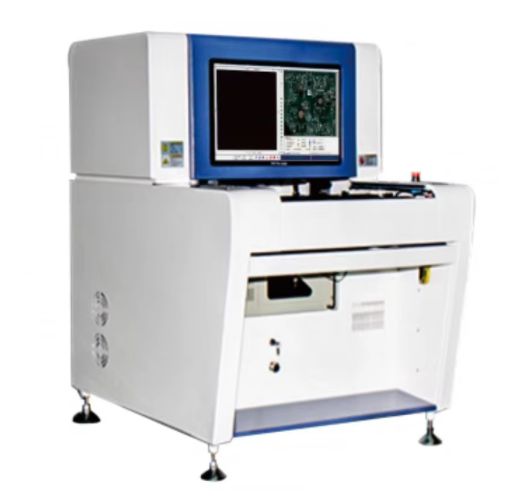

| Model Number | YS-A410 |
| Inspection | Using multiple algorithms synthetically such as WIDM, Color Image contrast technology, Color extracting technology, similarity, two-value handling technology, OCR/OCV and so on |
|---|---|
| Camera | Colour camera: 20 μm (15μm for Optical) |
| Lamp-house | Ring RGB LED flash lamp-house |
| Image Processing Speed | 0201 Chip - <10ms Per-image Time - <170ms |
| Inspection Items |
Paste Printing Defects: Misaligned, overflow, insufficient, pasting open, stain Component Defects: Missing, misaligned, skewed, tombstone, billboard, overturned, reversed polarity, wrong, damaged Solder Defects: Overflow, insufficient, short solder, stain |
| Anti Static Measures | Anti-static electric outlet, anti-static wreath |
| PCB Size | 25 × 25 mm - 480 × 330mm (Can be customized) |
| Machine Dimensions | 868 × 1033 × 1340mm |
| Power Supply | AC220V ±10%, single phase 50/60HZ, power consumption 600W |
| Weight | ~310kg |
| PCB Thickness | 0.5mm-5mm |
| PCB Warp Tolerance | ± 2mm |
| Computer | CPU: Intel dual-core, Memory: 4G, Hard disk: 1T |
| Display | 22-inch TFT |
| Component Clearance | TOP <28mm, BOT <75mm |
| Characteristics | WDM, study OK template, automatically set template imaging, identify data and error numerical value |
| Working Environment | Temperature 10-40℃, humidity 30-80%RH |
