Automatic LENS Glue Dispensing Machine

プロダクト細部

起源の場所: 広東省、中国

ブランド名: YUSH

支払及び船積みの言葉

最小注文数量: 1セット

価格: $28,000 / set

最高の価格を入手する

プロダクト細部

製品説明

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic lens glue dispensing machine, PCB depaneling glue dispenser, lens adhesive dispensing equipment


重さ:	650kg	力:	10 kW
電圧:	220V/380V	配給範囲:	X400Y400Z50mm
製品重量:	最大4.5kg	引火点25度:	Max.6mm
ビジョン方法論:	CCD	クリーニングシステム:	オート
寸法:	W770D1200H1500mm	最高速度:	2000mm/s
注入バルブ速度:	200ポイント/秒	分配精度:	±0.02mm
繰り返し精度:	±0.01mm	最小接着幅:	0.2mm
コアコンポーネント:	CNC

重さ:	650kg
力:	10 kW
電圧:	220V/380V
配給範囲:	X400Y400Z50mm
製品重量:	最大4.5kg
引火点25度:	Max.6mm
ビジョン方法論:	CCD
クリーニングシステム:	オート
寸法:	W770D1200H1500mm
最高速度:	2000mm/s
注入バルブ速度:	200ポイント/秒
分配精度:	±0.02mm
繰り返し精度:	±0.01mm
最小接着幅:	0.2mm
コアコンポーネント:	CNC

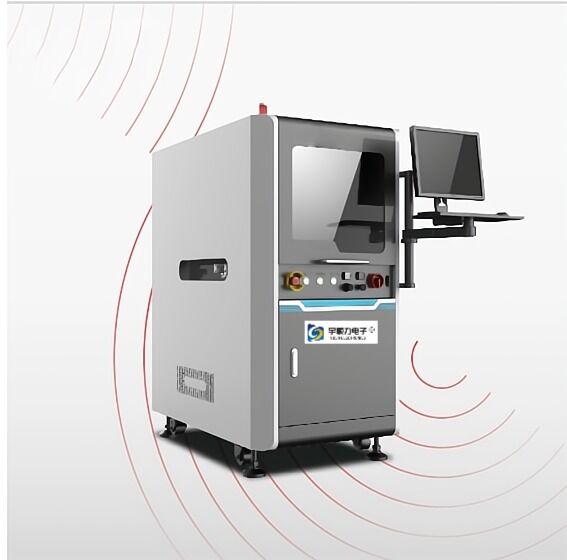

Automatic LENS Glue Dispensing Machine

The YUSH dispensing system delivers exceptional cost performance with reliable, durable, and concise design. Compatible with various PCB and base material specifications, the system utilizes UFD operating software to ensure stability and reliability. Designed for chip sealing, PCB assembly, SMT red glue dispensing, LED lens applications, and medical products, it features adjustable track width for versatile product compatibility.

Key Features

High cost performance with reliable operation
Non-contact jet valve enables smaller dispensing diameter and wider application area
Jet valve improves reliability, uniformity, output, and material utilization
Minimum glue overflow width controlled within 0.2mm (configuration and glue dependent)
Chip edge identification provides superior accuracy compared to mark-point identification
ID identification, automatic program calling, fool-proofing, and data statistics for smart manufacturing

Technical Specifications

Model	YS-D450	YS-D600(LENS)	YS-D1200(LENS)
Dispensing Range	X400Y400Z50mm	X600Y400Z50mm	X1200Y400Z50mm
Product Weight	Max. 4.5kg
Product Thickness	Max. 6mm
Maximum Speed	2000mm/s
Vision Methodology	CCD
Cleaning System	Auto
Injection Valve Speed	200 points/s
Dispensing Accuracy	±0.02mm
Repeated Accuracy	±0.01mm
Weight	650 Kg	750 Kg	950 Kg
Dimension	W770D1200H1500mm	W880D1200H1500mm	W1590D1200H1500mm

Company Information

YUSH Electronic Technology Co., Ltd is a specialized manufacturer and trader focused on research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, with convenient transportation access, all products comply with international quality standards and are appreciated in global markets. We welcome custom orders and look forward to establishing successful business relationships worldwide.

Frequently Asked Questions

Who are we?

Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our team comprises 301-500 professionals.

How can we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment to ensure quality standards.

What can you buy from us?

We specialize in PCB depaneling equipment, PCB separators, PCB cutting machines, PCB depaneling systems, and V-cut machines.

Why should you buy from us instead of other suppliers?

Founded in 2004 and located in Jiangsu's manufacturing hub, YUSH Electronic Technology brings professional expertise in PCB separator and depanelizer electronic equipment machinery with advanced production facilities and experienced teams.

What services can we provide?

Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Types: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
