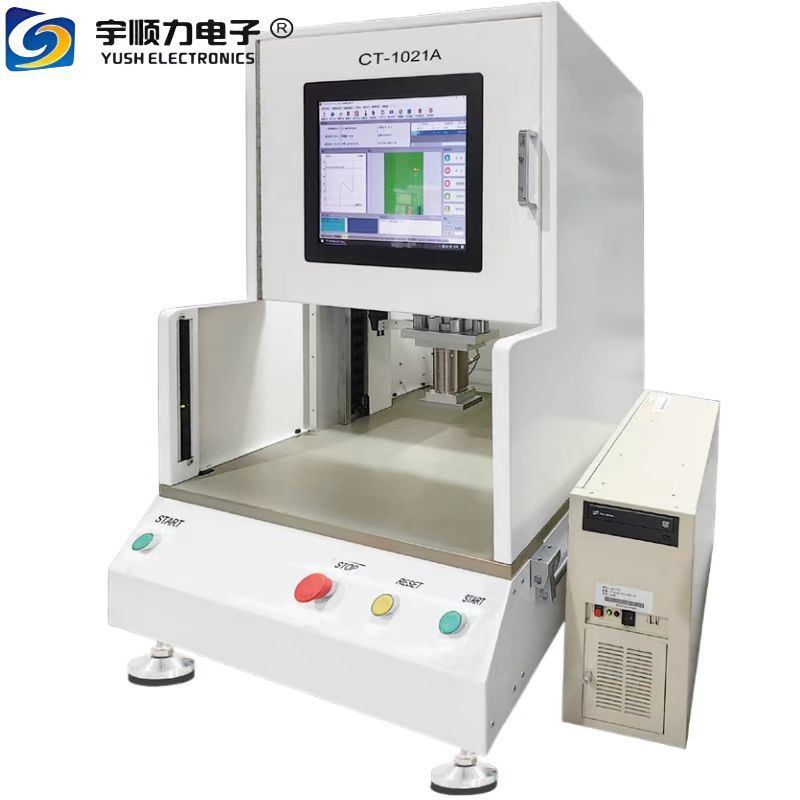

Name: High Efficiency CT-Series Desktop Semi-automatic Press-fit Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: CT-1021A
Price: 5800 USD
Availability: InStock

プロダクト細部

起源の場所: 中国、広東省

ブランド名: YUSH

証明: CE

モデル番号: CT-1021A

支払及び船積みの言葉

最小注文数量: 1

価格: USD5800

パッケージの詳細: 木製のケース

受渡し時間: 20作業日

支払条件: L/C、D/A、D/P、T/T

供給の能力: 1000

最高の価格を入手する

プロダクト細部

製品説明

ハイライト:
                                                                                                                                                                                                                semi-automatic press-fit machine, desktop press-fit machine, high efficiency SMT press-fit


マックス押す力:	0.05T	制御方法:	産業用PC+サーボモーター
効果的なプレスストローク:	100 mm	ブロックサイズを押します:	100L x 50W mm
安全装置:	軽いカーテン

マックス押す力:	0.05T
制御方法:	産業用PC+サーボモーター
効果的なプレスストローク:	100 mm
ブロックサイズを押します:	100L x 50W mm
安全装置:	軽いカーテン

High Efficiency CT-Series Desktop Semi-automatic Press-fit Machine

Product Characteristics

H-shaped structure: Consists of two vertical frames and horizontal beam with high compressive strength and deformation resistance, ensuring equipment stability
Servo motor drive enables real-time monitoring of pressure, displacement, and speed
Precise control of ram displacement and speed achieves high-precision press-fitting, effectively avoiding overpressure and underpressure
Real-time pressure monitoring with closed-loop control throughout the pressing process
Controlled by industrial computer with comprehensive SPC management, log management, user permission management, and program management
Equipped with mold and component databases for data management, with unlimited program capacity
Features pressure curve sampling control, curve slope control, and pressure/position/speed control for high-quality dynamic controllable pressing
Automatic saving, envelope, and analysis software package for pressure curve
Component alignment via laser-assisted positioning
Safety measures include dual-button start and light curtain to ensure operational safety
Supports both Chinese and English interfaces, with MES data transmission capability
Offers online and offline programming functionality
