Name: High Quality and High Efficiency Visual PCB Desktop PCB Router
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-JYD-3A
Price: 9800 USD
Availability: InStock

プロダクト細部

起源の場所: 広東

ブランド名: YUSH

証明: CE

モデル番号: YS-JYD-3A

支払及び船積みの言葉

最小注文数量: 1

価格: USD9800

パッケージの詳細: 木製ケース

受渡し時間: 20作業日

支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン

供給の能力: 1000

最高の価格を入手する

プロダクト細部

製品説明

ハイライト:
                                                                                                                                                                                desktop PCB router machine, high efficiency PCB depaneling machine, visual PCB router with warranty


切断性能:	500mm/s	運転システムの繰り返し精度:	±0.02mm
基板の厚さ:	0.4mm-4mm	機械のサイズ:	650550615mm

切断性能:	500mm/s
運転システムの繰り返し精度:	±0.02mm
基板の厚さ:	0.4mm-4mm
機械のサイズ:	650550615mm

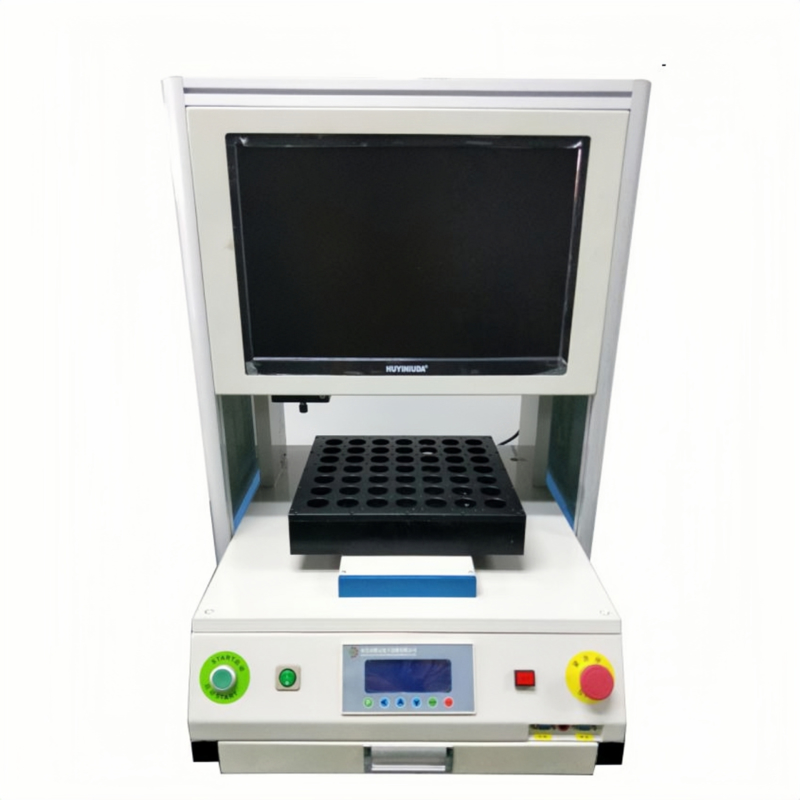

High Quality and High Efficiency Visual PCB Desktop PCB Router

Brand: YUSH

Model: YS-JYD-3A

Voltage: 220V

Main Features and Applications

Suitable for cutting arc and line of finished plate
Suitable for cutting small multi board, such as mobile phone base plate, PDA, PC interface card, etc
Practical, trajectory programmable; low stress; V-CUT machine cannot be realized
Avoid tin crack and parts damage caused by artificial folding
Avoid using punching or folding, which may cause mechanical stress problems

Technical Specifications

Bench type single table cutting machine, with a speed of up to 100 mm/s and a positioning speed of 500 mm/s
High quality shaft system enables the system to accelerate and decelerate quickly, reduce the synchronization time, improve productivity, and maintain high precision
Use high-quality hardware to ensure high rigidity and high performance
All guide screws are covered to prevent dust and dirt from entering, so as to improve the service life and performance of the shaft
Avoid tin cracking and parts damage caused by artificial folding
Avoid the use of punching or folding, resulting in mechanical stress problems
It is suitable for cutting arc and line of finished plate
It is suitable for small multi wrench cutting, such as cell phone base plate, PDA, PC interface card, etc
