ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                desktop PCB router milling machine, PCB depaneling machine with warranty, compact desktop PCB milling machine


重さ:	135のKG	力:	10 kW
電圧:	220V/380V	モデル:	YS-L530
寸法:	L623W737H587mm	マシンパワー:	3.6kw
クリーナーのワット数:	2.2KW/220V	テーブル次元:	260mm*260mm
切断速度:	0-100mm/s	繰り返し精度:	±0.01mm
作業エリア:	X:0-260mm、Y:0-260mm、Z:0-80mm	プリント基板の厚さ:	0.5～5mm
ルーターのビット直径:	0.8-3.0mm	梱包の詳細:	60000rpm
エアプレス:	0.4mpa

重さ:	135のKG
力:	10 kW
電圧:	220V/380V
モデル:	YS-L530
寸法:	L623W737H587mm
マシンパワー:	3.6kw
クリーナーのワット数:	2.2KW/220V
テーブル次元:	260mm*260mm
切断速度:	0-100mm/s
繰り返し精度:	±0.01mm
作業エリア:	X:0-260mm、Y:0-260mm、Z:0-80mm
プリント基板の厚さ:	0.5～5mm
ルーターのビット直径:	0.8-3.0mm
梱包の詳細:	60000rpm
エアプレス:	0.4mpa

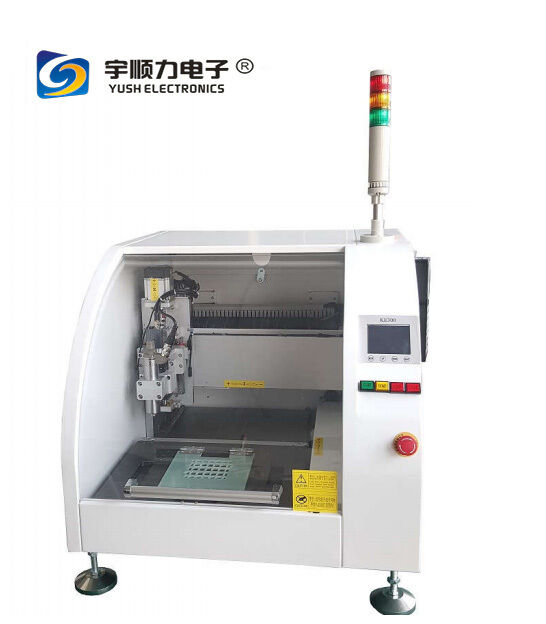

Desktop PCB Router Milling Machine

Key Features

Bottom dust collection system utilizing free fall theory for optimal dust removal
Specialized fixtures ensure secure positioning to maintain cutting accuracy
Automatic system correction based on product installation position for high-precision cutting
Built-in static eliminator removes electricity and dust while air nozzles continuously work to prevent static damage and dust accumulation
Safety door design reduces noise, contains dust, and enhances operational safety
Integrated dust collection box with maintenance scheduling based on cutting requirements

Applications

Ideal for separating stamp hole PCB boards and irregular joint PCB boards

Technical Specifications

Function Items	Hardware Demand
Model	YS-L530
Dimension	L623W737H587mm
Power	220V/50HZ
Machine Power	3.6KW
Weight	About 300KG
Cleaner Dimension	Inside / L650W500H550mm
Cleaner Wattage	2.2KW/220V
Table Dimension	260mm*260mm
Cutting Speed	0-100mm/s
X,Y,Z Axis Driving Speed	X, Y axis 0-1000mm/s (min), Z axis 0-750mm/s (min), servo motor drive
Repeatability Accuracy	±0.01mm
Working Area	X:0-260mm, Y:0-260mm, Z:0-80mm
PCB Thickness	0.5-5mm
Router Bit Diameter	0.8-3.0mm
Cutting Precision	±0.01mm
Cutting Ability	Linear, Circular, U-curve, Arc, L-curve
Cutter Change	Manual, tools needed
Spindle Speed	60000rpm
Spindle Cooling System	Air cooling mode
Safety Device	Safety door and door lock sensor
Voice Control	≤78 dB (measured in 1M distance)
