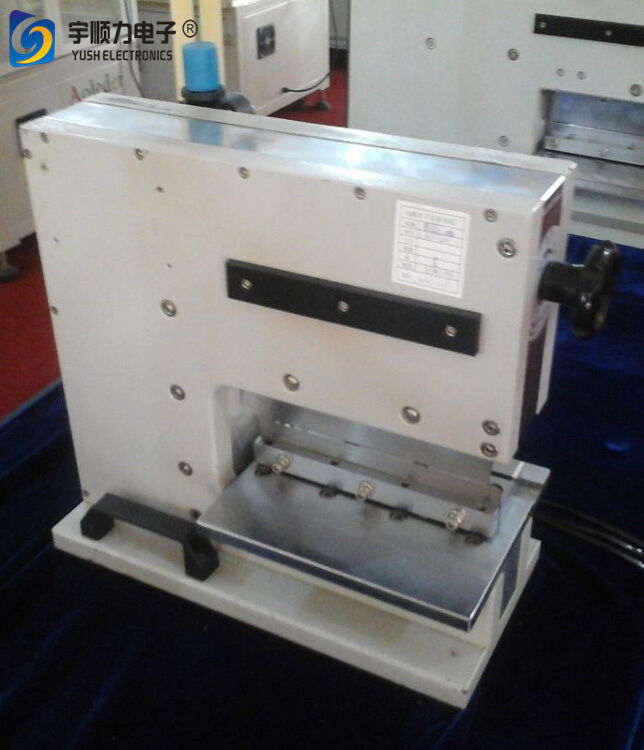

YSVC-2 Practical Good Quality PCB Depaneling Machine for V-CUT Board

プロダクト細部

起源の場所: 江蘇省、中国

ブランド名: YUSH

支払及び船積みの言葉

最小注文数量: 1セット

価格: $3,800 / set

最高の価格を入手する

プロダクト細部

製品説明

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine for V-CUT, V-CUT PCB depaneling tool, YSVC-2 PCB depaneling machine


重さ:	150kg	電圧:	220V/110V
最大長さ:	330mm	使用空気圧:	0.5-0.7MPA
サイズ:	620230400mm	切断厚さ:	0.3-3.5mm
最高の構成の高さ:	70mm	最小コンポーネント距離:	0.5mm
電源:	AC220V/110V	パッケージサイズ:	720mm300mm440mm
厚さの範囲:	0.50～3.5mm	コアコンポーネント:	モーター
マシンタイプ:	PCBデパンリングマシン	ボードの長さ:	300mm/400mm
ドライブの種類:	空気圧

重さ:	150kg
電圧:	220V/110V
最大長さ:	330mm
使用空気圧:	0.5-0.7MPA
サイズ:	620230400mm
切断厚さ:	0.3-3.5mm
最高の構成の高さ:	70mm
最小コンポーネント距離:	0.5mm
電源:	AC220V/110V
パッケージサイズ:	720mm300mm440mm
厚さの範囲:	0.50～3.5mm
コアコンポーネント:	モーター
マシンタイプ:	PCBデパンリングマシン
ボードの長さ:	300mm/400mm
ドライブの種類:	空気圧

YSVC-2 Practical Good Quality PCB Depaneling Machine for V-CUT Board

YSVC-2 PCB Depaneling Machine for V-CUT Board

Professional quality PCB depaneling machine designed for efficient separation of V-CUT boards with precision and safety.

Key Advantages

Easy maintenance and operation
Safe shearing of thin PCBs down to 0.3mm thickness
Vibration-free shearing process with pneumatic drive unit

Technical Specifications

Maximum Length: 330mm (Customizable)
Cutting Thickness: 0.3-3.5mm
Voltage and Power: 110V/220V
Working Air Pressure: 0.5-0.7Mpa
Speed: Dependent on operator skill level
Dimensions: 620×230×400mm
Weight: 165kg

Advanced Features

Pneumatically driven with electromagnetic valve control
Vibration-free shearing process using pneumatic drive unit
Safe shearing of PCBs with sensitive SMD components and thin boards down to 0.3mm
Foot pedal operation for convenient shearing control
Accommodates components up to 70mm near V-groove
Minimum 0.5mm clearance between V-groove and electronic components
Easy PCB gap adjustment via front-mounted knob

Straight Knife PCB Separation Technology

Pneumatically driven straight knife separator designed to carefully separate pre-scored panel boards without bending or tension stress. The specialized knife design ensures safe separation of boards with high components placed close to edges, while wedge-shaped knives cut within the groove to safely separate boards under 1mm thickness without creating stress.

Operational Benefits

Vibration-free operation prevents damage to precise PCBs
Easy board gap adjustment via top-mounted knob with low friction design
Adjustable lower knife height with separate front/rear adjustment
No thin plates required after knife re-sharpening
Simple operation and maintenance suitable for unskilled personnel

Detailed Specifications

Parameter	Specification
Maximum Board Length	300mm / 400mm
Package Size	720mm(L)×300mm(W)×440mm(H)
Thickness Range	0.50-3.5mm
Power Supply	220VAC / 110V
Working Air Pressure	0.4-0.6Mpa
Weight	150kg
Application Scope	All V-CUT SMD PCB Boards
