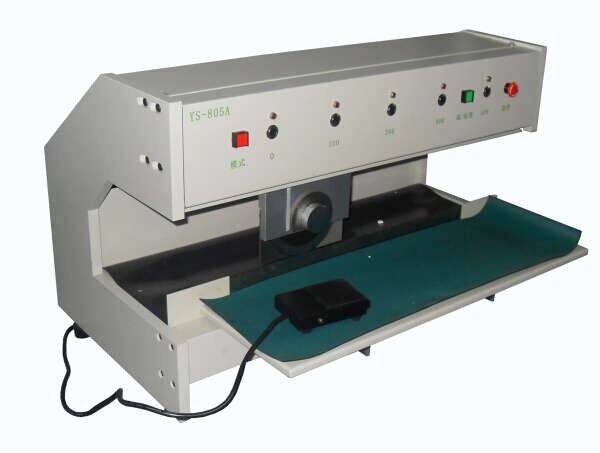

High Quality PCB Cutting Machine Component Lead Cutting Machine

プロダクト細部

起源の場所: 江蘇省、中国

ブランド名: YUSH

支払及び船積みの言葉

最小注文数量: 1セット

価格: $1,000-5,000 / set

最高 の 価格 を 入手 する
ハイライト:

PCB depaneling machine component

,

PCB cutting machine with warranty

,

lead cutting machine for PCB

重さ:
55kg
力:
10 kW
電圧:
110/220 v
最小速度:
100/200/300/500 mm/s
ポーランド人数:
1
タイプ:
空気
サイズ:
780×460×560mm
厚さ:
0.6〜3.5mm
モデル:
YSV-1A
長さ:
460 mm または 600 mm
スピード:
100/200/300/500 mm/s
電源:
110/220 v
機械サイズ:
770*510*450mm
機械重量:
55kg
コアコンポーネント:
モーター
重さ:
55kg
力:
10 kW
電圧:
110/220 v
最小速度:
100/200/300/500 mm/s
ポーランド人数:
1
タイプ:
空気
サイズ:
780×460×560mm
厚さ:
0.6〜3.5mm
モデル:
YSV-1A
長さ:
460 mm または 600 mm
スピード:
100/200/300/500 mm/s
電源:
110/220 v
機械サイズ:
770*510*450mm
機械重量:
55kg
コアコンポーネント:
モーター
High Quality PCB Cutting Machine Component Lead Cutting Machine
High Quality PCB Cutting Machine Component Lead Cutting Machine
Technical Specifications
ModelYSV-1A
Length (mm)460 or 600
Speed (mm/s)100/200/300/500
Thickness (mm)0.6-3.5
Power Supply (V)110/220
Size (mm)770×510×450
Weight55kg
High Quality PCB Cutting Machine Component Lead Cutting Machine 0 High Quality PCB Cutting Machine Component Lead Cutting Machine 0
YSV-1A Key Features
  • Separate pre-scored PCB assembly without stress on either PCB or component
  • One touch programming of cut length with digital display
  • Separating speed is adjusted by a rotary knob
  • Handle intermittent scoring or cut-outs
  • Board with projected component can be cut precisely
  • Large stainless steel platform on both sides of cutting blade prevents board wobble; table height and angle are adjustable
  • Optional PCB conveyor belt to remove finished board
  • Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear
High Quality PCB Cutting Machine Component Lead Cutting Machine 2 High Quality PCB Cutting Machine Component Lead Cutting Machine 2
Competitive Advantages
  • YSV-1A PCB Lead Cutting Machine original manufacturers
  • Day technical support services
  • Limit the handling of complaints, half an hour back to customers
  • Depanel Experts, the provision of professional PCB sub-programme
