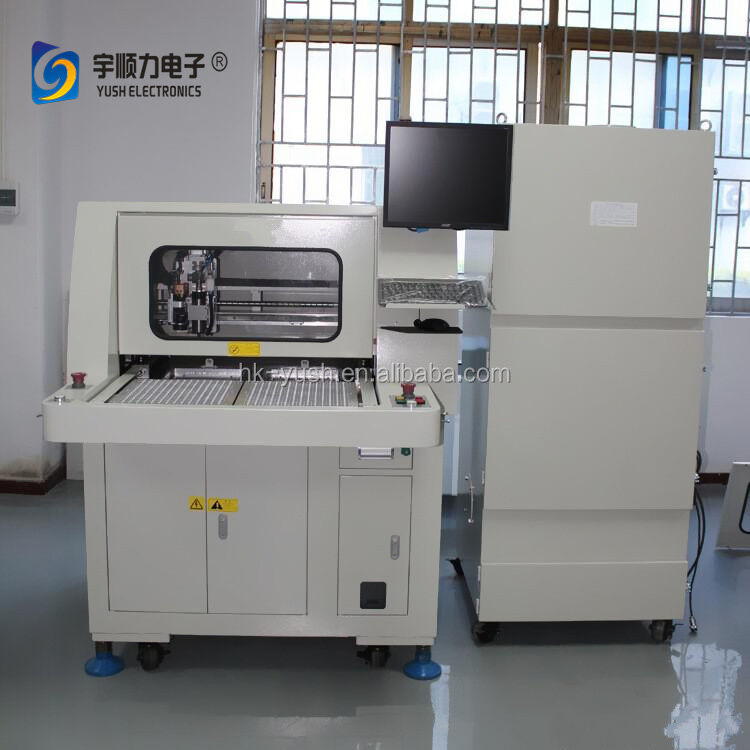

Small Size Engraving and Machine for Pcb Cutting -YSVC-650

プロダクト細部

起源の場所: 中国

ブランド名: YUSH

支払及び船積みの言葉

最小注文数量: 1セット

価格: $28,000 / set

最高の価格を入手する

プロダクト細部

製品説明

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                small PCB depaneling machine, engraving machine for PCB cutting, YSVC-650 PCB cutting machine


重さ:	3500 kg	力:	10 kW
電圧:	220V/380V	Y 切断速度:	0～100mm/s
梱包の詳細:	50000RPM	空気圧:	4kg/cm2
ホストの次元:	700mm * 900mm * 1200mm	正確さ:	±0.01mm
Z軸ストローク:	50mm	切断精度:	±0.1mm
消費電力:	2kVA	集塵機電圧:	380V 1.5P
集塵機外形寸法図:	680mm * 400mm * 900mm	最大PCBサイズ:	450mm*500mm
XYZドライブ:	ACサーボモーター

重さ:	3500 kg
力:	10 kW
電圧:	220V/380V
Y 切断速度:	0～100mm/s
梱包の詳細:	50000RPM
空気圧:	4kg/cm2
ホストの次元:	700mm * 900mm * 1200mm
正確さ:	±0.01mm
Z軸ストローク:	50mm
切断精度:	±0.1mm
消費電力:	2kVA
集塵機電圧:	380V 1.5P
集塵機外形寸法図:	680mm * 400mm * 900mm
最大PCBサイズ:	450mm*500mm
XYZドライブ:	ACサーボモーター

Small Size Engraving and Machine for Pcb Cutting -YSVC-650

Small Size Engraving and Machine for PCB Cutting - YSVC-650

Product Overview

The YSVC-650 PCB cutting machine is designed for precision depaneling of printed circuit boards. This automated gong knife scoring system eliminates common production issues while maintaining high accuracy and efficiency.

Key Benefits

Prevents artificial tin cracks and component damage during separation
Eliminates stress problems caused by mechanical force generation
Suitable for various housing types and irregular PCB board shapes (straight lines, arcs, L-types, etc.)
X, Y, Z-axis integration with high-speed 60,000 rpm spindle motor

Machine Features

Designed for puzzle and semi-finished product division
High cutting speed with exceptional precision
Simple operation and user-friendly interface
Quick tool change capability with minimal setup adjustment
High-intensity dust collection system maintains PCB and surface cleanliness
Minimal stress cutting mode for optimal board integrity

Technical Specifications

Cutting Speed	0 - 100mm/s
Machine Accuracy	± 0.01mm
Z-axis Stroke	50mm
Control System	X, Y, Z control or industrial PC with touch screen
Drive System	AC servo motor for X, Y, Z axes
Cutting Accuracy	± 0.1mm
Spindle Speed	MAX 50,000 rpm
Host Voltage	220V 50/60Hz
Air Pressure	4kg/cm² or higher
Power Consumption	2KVA
Dust Collection	Integrated dust collection system
Dust Collector Voltage	380V 1.5P
Host Dimensions	700mm × 900mm × 1200mm
Dust Collector Dimensions	680mm × 400mm × 900mm

Optional Features

CCD vision system for enhanced precision
Comprehensive dust collection (above and below)
Multiple PCB board size compatibility: 280mm × 340mm, 300mm × 400mm, 450mm × 500mm
Touch screen and hand-knitted or PC operation options
