YS-SL6060 Sheet Metal Stencil Laser Cutting Machine

プロダクト細部

起源の場所: 広東省、中国

ブランド名: YUSH

支払及び船積みの言葉

最小注文数量: 1セット

価格: $20,000 / set

最高の価格を入手する

プロダクト細部

製品説明

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                sheet metal stencil laser cutter, PCB depaneling laser machine, stencil cutting machine with warranty


重さ:	1500kg	力:	10 kW
電圧:	220V/380V	寸法:	L1680W1500H1630mm
定格電力:	2kw	ピーク電力:	6kW
プラットフォームの精度:	±3μm	プラットフォームの再現性:	±1.5μm
プラットフォームの速度:	≤300mm/秒	位置検出:	0.1μm
範囲の切断:	X 600mm * Y 600mm	テーブルサイズ:	X 620mm * Y 620mm
切断厚さ:	≤0.5mm	焦点直径:	25～30μm
レーザー出力:	50W	波長:	1070mm
レーザー重量:	20kg

重さ:	1500kg
力:	10 kW
電圧:	220V/380V
寸法:	L1680W1500H1630mm
定格電力:	2kw
ピーク電力:	6kW
プラットフォームの精度:	±3μm
プラットフォームの再現性:	±1.5μm
プラットフォームの速度:	≤300mm/秒
位置検出:	0.1μm
範囲の切断:	X 600mm * Y 600mm
テーブルサイズ:	X 620mm * Y 620mm
切断厚さ:	≤0.5mm
焦点直径:	25～30μm
レーザー出力:	50W
波長:	1070mm
レーザー重量:	20kg

YS-SL6060 Sheet Metal Stencil Laser Cutting Machine

High-performance fiber laser cutting system designed for precision sheet metal stencil manufacturing and SMT template production.

Key Features

Innovative Waste Collection: Advanced chip, slag, and iron dust removal system enhances equipment stability and service life
High Power Fiber Laser: Semiconductor-pumped solid-state laser technology for efficient cutting of various metal materials
Custom Process Solutions: Professional fixture design adaptable to multiple material sizes and shapes

Equipment Description

Machine Name	High-speed laser sheet metal cutting machine
Model	YS-SL6060
Applications	SMT templates, precision metal parts
Machine Color	Creamy-white
Total Weight	Approximately 1500KG
Physical Dimensions	L1680 × W1500 × H1630mm
Platform	Granite base with high stability and reliability
Total Power	Rated: 2KW, Peak: 6KW

Technical Specifications

Platform Positioning Accuracy	±3μm
Platform Repeatability	±1.5μm
Platform Velocity	≤300mm/S
Location Detection Variability	0.1μm
Cutting Range	X 600mm × Y 600mm
Table Size	X 620mm × Y 620mm
Cutting Thickness	≤0.5mm (reference value)
Focus Diameter	25-30μm
Best Cutting Effectiveness	Up to 9400 synthetic apertures/hour, 13000-14000 standard apertures/hour

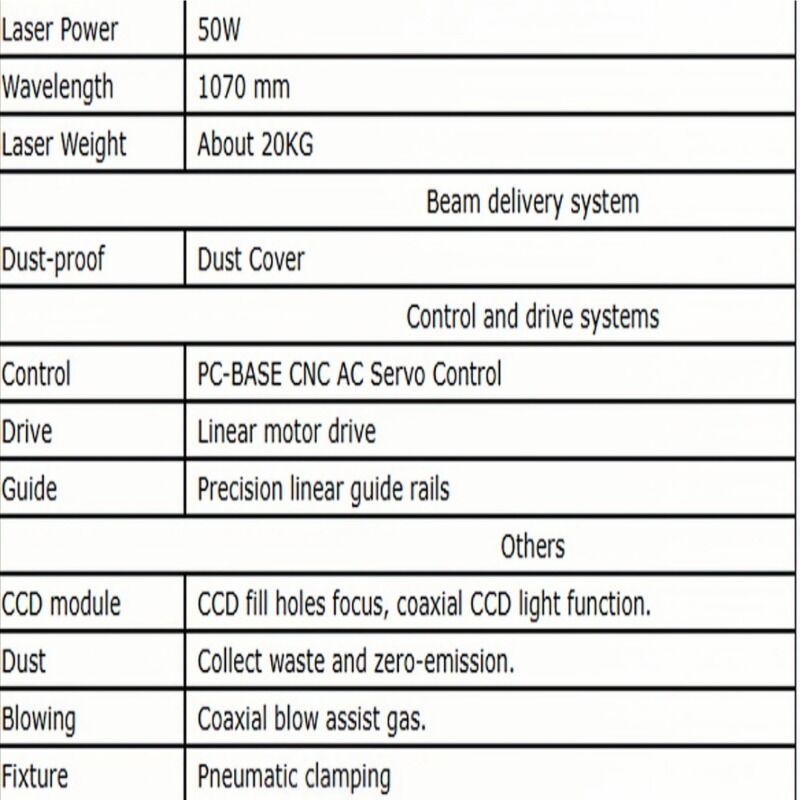

Configuration Specification

Laser Power	50W
Wavelength	1070nm
Laser Weight	Approximately 20KG
Beam Delivery System	Dust Cover
Control System	PC-BASE CNC AC Servo Control
Drive System	Linear motor drive
Guide System	Precision linear guide rails
CCD Module	CCD fill holes focus, coaxial CCD light function
Dust Collection	Collect waste and zero-emission
Blowing System	Coaxial blow assist gas
Fixture	Pneumatic clamping

Software System

Software System	YUSH Mark
Language	Chinese/English
Application Environment	Windows XP
File Format	DXF, CNC
Implementation Monitoring	Cutting time, cutting number of holes, auxiliary gas, cutting state

Software Features:

CNC support for direct document opening, DXF files, Gerber files with selection, rotation, and mirror operations
Support for establishing different cutting parameter databases for various steel thicknesses
Document path optimization capabilities
Automatic cutting member records and query functionality

Environmental Requirements

Power Requirements: Regulator (AC 220V single-phase 10KVA) with voltage fluctuations not exceeding ±5%
Grounding Requirements: Independent stable ground without interference (6mm² ground line)
Environmental Conditions: Pure oxygen supply, oil-free gas, ambient temperature 24-26°C, relative humidity below 60%, clean environment
