プロダクト細部
起源の場所: 江蘇省、中国
ブランド名: YUSH

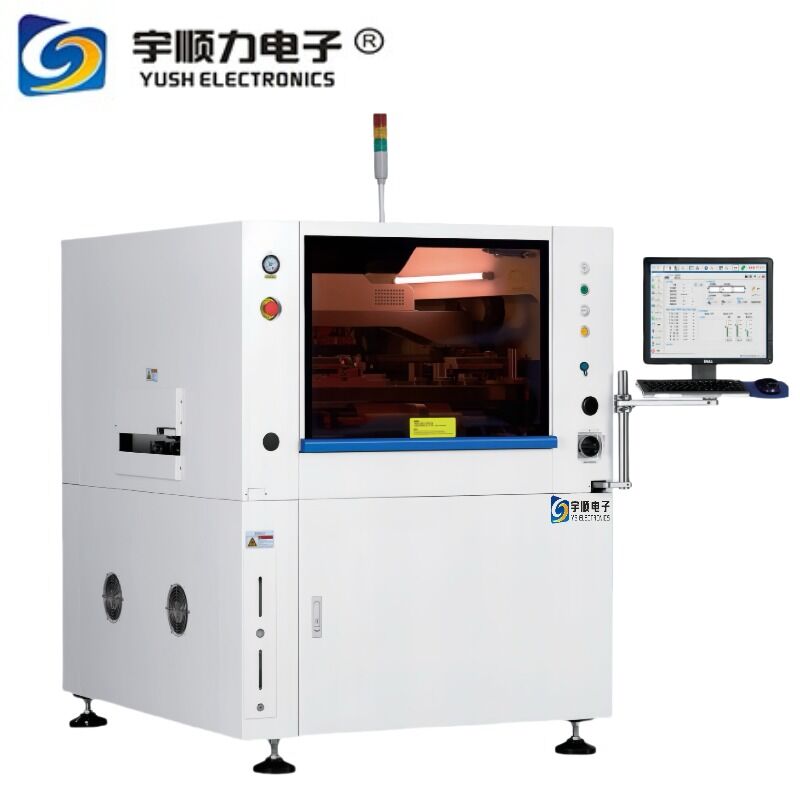

モデル番号: YS-G9
支払及び船積みの言葉
最小注文数量: 1セット
価格: $10,000-10,900 / set
重さ: |
1000kg |
最大ボードサイズ: |
450*340mm |
輸送速度: |
900±40mm |
印刷速度: |
10~200mm/秒 |
電源: |
AC:220 ±10%,50/60Hz 2.2KW |
機械寸法: |
1530 ((H) mm |
機長: |
1172 ((l) mm |
機械幅: |
1385 (W) mm |
動作温度: |
-20℃〜+45℃ |
位置の精度を繰り返します: |
±10um@6 σ、CPK≧2.0 |
印刷精度: |
±18um@6 σ、CPK≧2.0 |
板厚: |
0.4~6mm |
最大ボード重量: |
3kg |
空気圧: |
4~6kgf/cm2 |
空気消費量: |
約5L/分 |
重さ: |
1000kg |
最大ボードサイズ: |
450*340mm |
輸送速度: |
900±40mm |
印刷速度: |
10~200mm/秒 |
電源: |
AC:220 ±10%,50/60Hz 2.2KW |
機械寸法: |
1530 ((H) mm |
機長: |
1172 ((l) mm |
機械幅: |
1385 (W) mm |
動作温度: |
-20℃〜+45℃ |
位置の精度を繰り返します: |
±10um@6 σ、CPK≧2.0 |
印刷精度: |
±18um@6 σ、CPK≧2.0 |
板厚: |
0.4~6mm |
最大ボード重量: |
3kg |
空気圧: |
4~6kgf/cm2 |
空気消費量: |
約5L/分 |
| Parameter | Specification |
|---|---|
| Repeat Position Accuracy | ±10μm @ 6σ, CPK ≥ 2.0 |
| Print Accuracy | ±18μm @ 6σ, CPK ≥ 2.0 |
| NCP Cycle Time (excluding cleaning/printing) | 7 seconds |
| HCP Cycle Time (including cleaning/printing) | 18 seconds per piece |
| Process Cycle Time | 4 minutes |
| Transfer Line Cycle Time | 2 minutes |
| Parameter | Specification |
|---|---|
| Maximum Board Size | 450 × 340 mm |
| Minimum Board Size | 50 × 50 mm |
| Board Thickness | 0.4 - 6 mm |
| Camera Mechanical Range | 450 × 340 mm |
| Maximum Board Weight | 3 kg |
| Board Edge Clearance | 2.5 mm |
| Board Height | 15 mm beyond trait items pin |
| Transport Speed | 900 ± 40 mm/s |
| Maximum Transport Speed | 1500 mm/s (segmented control) |
| Transport Direction | One section transport guide rail/One stage |
| Parameter | Specification |
|---|---|
| Print Speed | 10 - 200 mm/sec |
| Print Pressure | 0.5 - 10 kg |
| Print Mode | One/Twice |
| Squeegee Type | Rubber/Squeegee Blade (angle 45/55/60) |
| Snap-off | 0 - 20 mm |
| Snap Speed | 0 - 20 mm/sec |
| Template Frame Size | 470 × 370 mm - 737 × 737 mm (Thickness: 20-40 mm) |
| Steel Mesh Positioning Mode | Automatic Y-direction positioning |
| Parameter | Specification |
|---|---|
| Cleaning System | Dry, Wet, Vacuum three modes |
| High Speed Cleaning | Integrated & weave cleaning |
| Cleaning System Type | Side spray type |
| Cleaning Stroke | Automatic generation |
| Cleaning Position | Pre-cleaning |
| Cleaning Speed | 10 - 200 mm/sec |
| Cleaning Fluid Consumption | Auto & manually adjustable |
| Cleaning Paper Consumption | Auto & manually adjustable |
| Parameter | Specification |
|---|---|
| Power Source | AC: 220V ±10%, 50/60Hz, 2.2KW |
| Air Pressure | 4 - 6 kgf/cm² |
| Air Consumption | Approximately 5 L/min |
| Operating Temperature | -20℃ to +45℃ |
| Working Environment Humidity | 30% - 60% |
| Machine Dimensions (without tower light) | 1530(H) × 1172(L) × 1385(W) mm |
| Machine Weight | Approximately 1000 kg |
| Equipment Load Bearing Requirements | 650 kg/m² |
