ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                carrier tape forming machine for PCB, PCB depaneling machine with carrier tape, automated carrier tape forming equipment


重さ:	290KG	電圧:	AC220V
電源:	220V 50-60HZ、1.2KWA	送り幅:	8-27mm
容量:	600m/h	寸法:	140×68×230cm
空気圧:	0.6MPa	気流:	2500のL/H
温度制限:	28℃以下	コアコンポーネント:	モーター
給餌システム:	ブレーキオートテンション	制御の予備加熱:	PLC温度システム
成形システム:	真空と熱風	使用法:	精密切断車
パンチング構造:	高精度機械

重さ:	290KG
電圧:	AC220V
電源:	220V 50-60HZ、1.2KWA
送り幅:	8-27mm
容量:	600m/h
寸法:	140×68×230cm
空気圧:	0.6MPa
気流:	2500のL/H
温度制限:	28℃以下
コアコンポーネント:	モーター
給餌システム:	ブレーキオートテンション
制御の予備加熱:	PLC温度システム
成形システム:	真空と熱風
使用法:	精密切断車
パンチング構造:	高精度機械

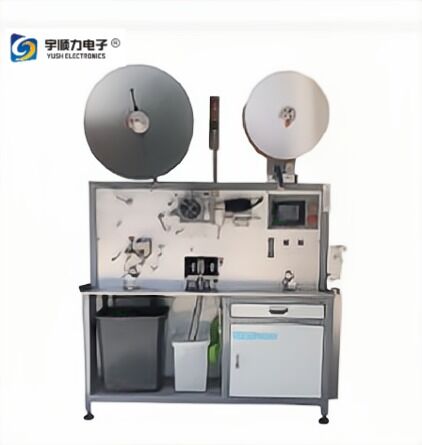

Carrier Tape Forming Machine

Key Features

Feeding System: Brake automatic tension feeding with optical sensor signaling, PLC control, and adjustable speed
Feeding Buffer: Prevents tape bending and damage from unstable feeding
Preheating System: PLC-controlled temperature system improves forming speed and prevents air holes or defective tapes
Forming System: Vacuum and hot air preheating with continuous rotary mould for rapid molding and guided pocket formation
Cutting System: Guidance mechanism with precision cutting wheel for accurate width sizing and automatic offcut removal
Punching Structure: High-precision mechanical working structure for continuous high-speed EIA standard chain hole production
Rolling Buffer: Automatic tension buffer with PLC control and adjustable speed to prevent product damage
Rolling System: Hierarchical order neat winding around tray with adjustable speed

Technical Specifications

Model	YS-8000F
Feeding Tape Width	8-27mm
Capacity	600m/h
Products Standard	EIA Standard
Weight	290KG
Dimension	140×68×230cm
Power Supply	220V 50-60HZ, 1.2KWA with reliable grounding
Air Supply	Compressed air inlet pressure ≥0.6 MPa, flow rate ≥2500 l/H, oil-free, water-free, and dust-free
Environmental Requirement	Temperature below 28℃, dust-free workshop
