ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Full Auto Loader PCB depaneling machine, High-Precision SMT line loader, Automated PCB unloader machine


重さ:	220kg	モデル:	YS-250XT
空気源:	0.4～0.6MPa	柵の高さ:	920±30mm
全体の寸法:	16909151680	マガジンの寸法:	535460565mm
PCB次元:	530×390mm	PCB保管数量:	100個
コンベヤ速度:	9m/min	昇降プラットフォームピッチ:	10,20,30,40
電源:	220V 50HZ	モーター出力:	90W
送りモーター:	15W	コンベアベルト:	7M平ベルト
コントロールパネル:	LED TFTタッチスクリーン

重さ:	220kg
モデル:	YS-250XT
空気源:	0.4～0.6MPa
柵の高さ:	920±30mm
全体の寸法:	16909151680
マガジンの寸法:	535460565mm
PCB次元:	530×390mm
PCB保管数量:	100個
コンベヤ速度:	9m/min
昇降プラットフォームピッチ:	10,20,30,40
電源:	220V 50HZ
モーター出力:	90W
送りモーター:	15W
コンベアベルト:	7M平ベルト
コントロールパネル:	LED TFTタッチスクリーン

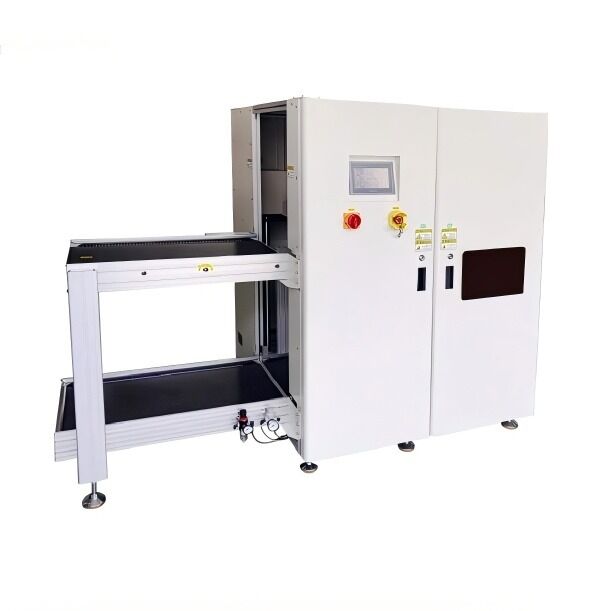

Full Auto Loader & Unloader: High-Precision Automated Smt Line

Full Auto Loader & Unloader: High-Precision Automated SMT Line

Key Features

PLC control system for precise automation
LED TFT touch screen control panel for intuitive operation
Four-step pitch selection (10, 20, 30, 40) for flexible configuration
Anti-clamping plate and foolproof functionality for enhanced safety
Bi-directional operation (left to right or right to left) as standard

Technical Specifications

Overall Dimensions	1690 × 915 × 1680 mm
Guide Rail Material	Special aluminum profile with Qianniao plastic chain
Magazine Drive	90W production brake motor with ball screw for step up/down movement
Feeding Box Transmission	15W constant speed platform motor
Clamping Mechanism	Pneumatic clamp structure
Magazine Specification	535 × 460 × 565 mm (L × W × H)
Maximum PCB Size	530 × 390 mm (L × W)
PCB Storage Capacity	100 pieces
Rail Transmission Height	920 ± 30 mm
Delivery Direction	Right to left / Left to right
Conveyor Belt	7M flat belt
Conveyor Transmission Speed	9 M/min
Lifting Platform Pitch Selection	10, 20, 30, 40
Control System	PLC programmable controller
Operation Features	Automatic board loading and board suction functionality
Control Panel	True color touch screen display
Pneumatic Components	Push plate cylinder position adjusted by screw rod
Power Supply	220V 50HZ
Air Source Requirement	0.4-0.6 MPa
