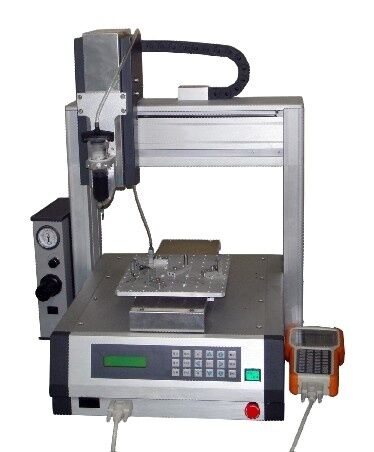

Smart Solder Paste Dispenser . Automatic Liquid Glue Dispensing Machine Robot

プロダクト細部

起源の場所: 江蘇省、中国

ブランド名: YUSH

モデル番号: YS-S330

支払及び船積みの言葉

最小注文数量: 1セット

価格: $5,000 / set

最高 の 価格 を 入手 する
ハイライト:

automatic solder paste dispenser

,

PCB liquid glue dispensing machine

,

smart glue dispensing robot

重さ:
70kg
作業エリア:
300*300*60 mm
使用湿度:
20~90%凝縮無し
寸法:
485×505×610mm
電圧:
250W
接着剤ポンプの粘度:
ほとんどすべての粘着性
分配の頭部:
1つ以上要求あり次第
力:
220/110ボルト
最高速度:
500mm/秒
最小吐出量:
0.001mL
解決:
0.01mm
再現性:
+/-0.01mm
サイズ:
460*450*480mm
コアコンポーネント:
ポンプ
モデル:
YS-S330
重さ:
70kg
作業エリア:
300*300*60 mm
使用湿度:
20~90%凝縮無し
寸法:
485×505×610mm
電圧:
250W
接着剤ポンプの粘度:
ほとんどすべての粘着性
分配の頭部:
1つ以上要求あり次第
力:
220/110ボルト
最高速度:
500mm/秒
最小吐出量:
0.001mL
解決:
0.01mm
再現性:
+/-0.01mm
サイズ:
460*450*480mm
コアコンポーネント:
ポンプ
モデル:
YS-S330
Smart Solder Paste Dispenser . Automatic Liquid Glue Dispensing Machine Robot
Smart Solder Paste Dispenser - Automatic Liquid Glue Dispensing Machine Robot
High-precision automated dispensing system for various industrial adhesives and solder pastes with customizable programming and wide application range.
Key Specifications
Model YS-S330
Power 220/110 V
Voltage 250W
Working Area (X*Y*Z) 300*300*60 mm (Customizable)
Speed Max. 500mm/sec
Dispensing Quantity Min. 0.001ml
Resolution 0.01mm
Repeatability +/-0.01mm
Size (L*W*H) 460*450*480 mm
Weight 70KG
Compatible Materials
Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.
Application Capabilities
Precision dispensing for dots, lines, squares, circles, and irregular graphics on surfaces, exterior walls, vertical planes, and product gaps.
Advanced Features
  • Full automatic robot with 3 or 4 axes
  • Dispensing path programmable in robot or imported from external computer
  • Easy operation with amendable holder and programs
  • Multiple independent running program storage
  • High precision glue control system
  • Configurable multiple dispensing heads
  • Wide dispensing area supporting multiple products
  • Customizable working table available
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio, headphones
  • Inductance industries: transformers, SMD transformers, relays, coil motors
  • Communications industry: mobile phone components, radios, telephones
  • Computers and digital products: electronic toys, MP3/MP4 players
  • Switches, connectors, wires, and cable assemblies
  • Electronics: components, integrated circuits, PCB solder paste, LCD screens
  • Optics: lenses and optical heads
  • Mechanical hardware, battery boxes, and machinery spare parts
  • LED manufacturing industries
Quality Assurance
High quality construction with CE certification compliance for industrial safety standards.
