プロダクト細部
起源の場所: 江蘇省、中国
ブランド名: YUSH
モデル番号: YS-S330
支払及び船積みの言葉
最小注文数量: 1セット
価格: $7,800 / set
重さ: |
70kg |
作業エリア: |
300*300*60 mm |
使用湿度: |
20~90%凝縮無し |
寸法: |
485×505×610mm |
電圧: |
250W |
接着剤ポンプの粘度: |
ほとんどすべての粘着性 |
分配の頭部: |
1つ以上要求あり次第 |
力: |
220/110ボルト |
最高速度: |
500mm/秒 |
最小吐出量: |
0.001mL |
解決: |
0.01mm |
再現性: |
+/-0.01mm |
サイズ: |
460*450*480mm |
コアコンポーネント: |
モーター |
モデル: |
YS-S330 |
重さ: |
70kg |
作業エリア: |
300*300*60 mm |
使用湿度: |
20~90%凝縮無し |
寸法: |
485×505×610mm |
電圧: |
250W |
接着剤ポンプの粘度: |
ほとんどすべての粘着性 |
分配の頭部: |
1つ以上要求あり次第 |
力: |
220/110ボルト |
最高速度: |
500mm/秒 |
最小吐出量: |
0.001mL |
解決: |
0.01mm |
再現性: |
+/-0.01mm |
サイズ: |
460*450*480mm |
コアコンポーネント: |
モーター |
モデル: |
YS-S330 |

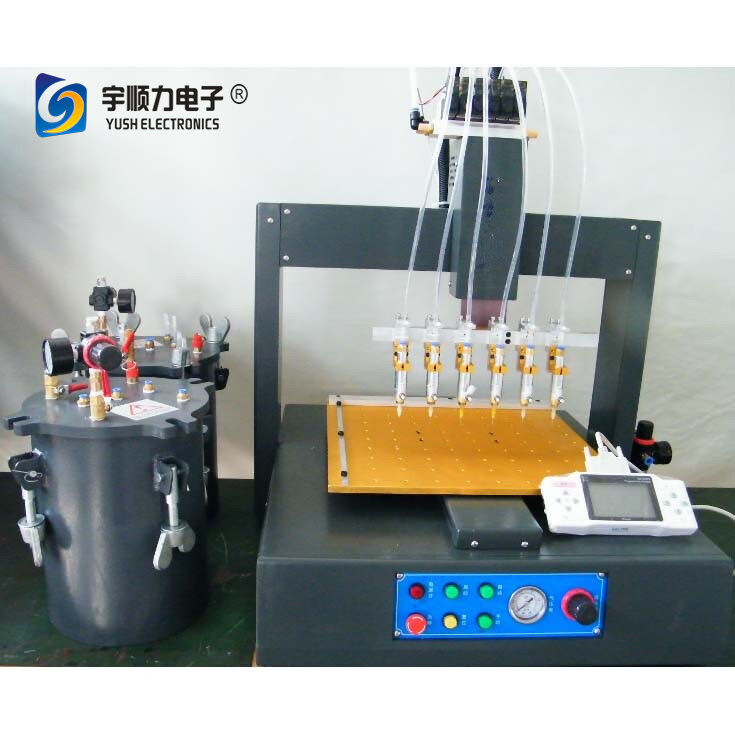

Our automatic two component dispenser is engineered for precision application of various adhesives including silicone glue, UV glue, AB glue, epoxy resins, and conductive compounds.
| Model | YS-S330 |
| Power | 220/110 V |
| Voltage | 250W |
| Working Area (X*Y*Z) | 300*300*60 mm (Customizable) |
| Speed | Max. 500mm/sec |
| Dispensing Quantity | Min. 0.001ml |
| Resolution | 0.01mm |
| Repeatability | +/-0.01mm |
| Size (L*W*H) | 460*450*480 mm |
| Weight | 70KG |
Suitable for dispensing: Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, and transparent paint.
Precision dispensing for dots, lines, squares, circles, and complex irregular patterns on product surfaces, exterior walls, vertical planes, and gaps.
Electro-acoustic Industry: Speakers, buzzers, audio systems, headphones
Inductance Industries: Small transformers, SMD transformers, relays, coil motors
Communications: Mobile phone components, radio systems, telecommunication devices
Computers & Digital Products: Digital cameras, MP3/MP4 players, electronic toys
Electrical Components: Switches, connectors, wiring systems, cable assemblies
Electronics Manufacturing: Integrated circuits, PCB solder paste, LCD screens, electronic parts
Optical Industry: Lenses, optical heads and components
Mechanical & Battery: Mechanical spare parts, battery boxes, industrial trademarks
LED Industries: LED manufacturing and assembly applications
