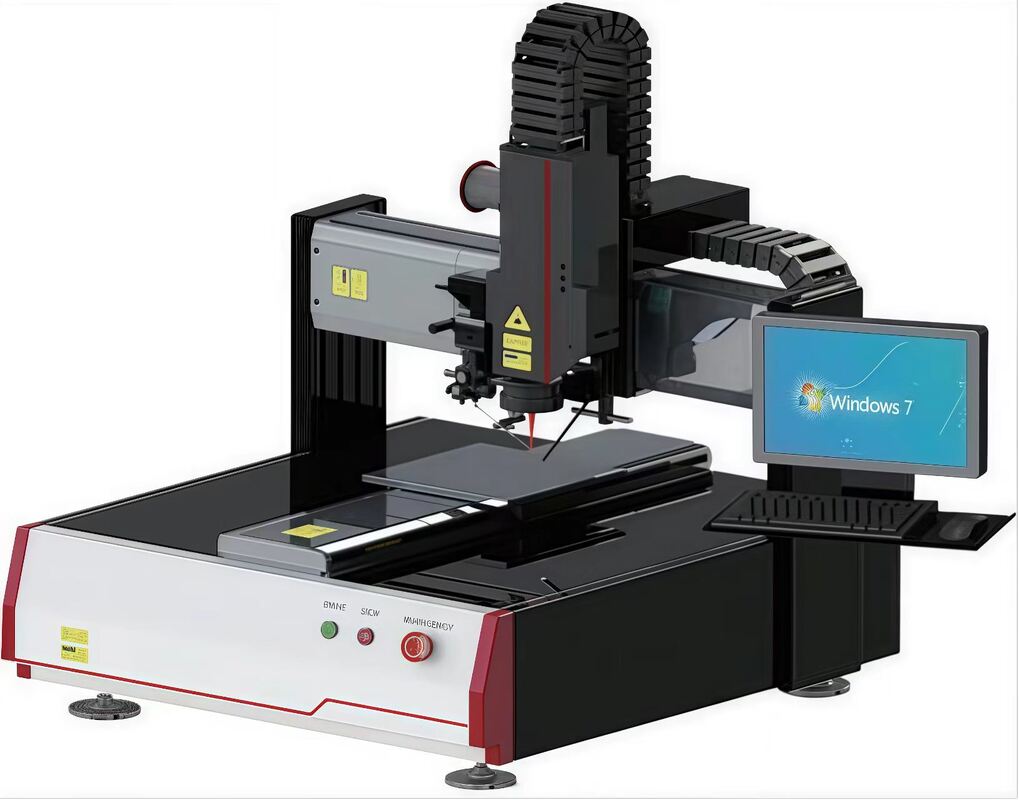

High Quality Desktop Temperature - Controlled Laser Soldering Machine

プロダクト細部

起源の場所: 中国、広東省

ブランド名: YUSH

証明: CE

支払及び船積みの言葉

最小注文数量: 1

価格: USD8800

パッケージの詳細: 木製ケース

受渡し時間: 20労働日

支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン

供給の能力: 100

最高の価格を入手する

プロダクト細部

製品説明

ハイライト:
                                                temperature-controlled laser soldering machine, desktop laser soldering machine, selective soldering machine with warranty


High Quality Desktop Temperature - Controlled Laser Soldering Machine

High Quality Desktop Temperature-Controlled Laser Soldering Machine

Technical Specifications

Power Supply	Alternating current 220±10V
Equipment Power Consumption	1000W (1000 watts)
Solder Wire Specifications	0.3-1.2mm (optional)
Operating Environment	25±5°C (25 plus or minus 5 degrees celsius)
Positioning Method	CCD positioning / mechanical positioning (optional)
Laser Power	50W / 70W / 100W (optional)
Working Distance	Adjustable from 100mm to 150mm
Product Dimensions	795 × 785 × 1200mm (795 by 785 by 1200 millimeters)
Effective Travel Distance	300×300×150mm (customizable)
Spot Type	Circular spot / special-shaped spot (optional)
Repeatability Accuracy	≤ 0.02mm
CCD Positioning Accuracy	≤ 0.03mm
Programming Method	Visual programming
Temperature Control Method	Real-time temperature control

Key Features & Benefits

Infrared Temperature Monitoring: Real-time temperature sensing ensures precise welding temperature control, preventing damage to solder pads and components
Non-Contact Operation: No physical contact with workpiece eliminates contact stress during soldering process
Low Heat Radiation: Minimal thermal impact on surrounding components
Static-Free Operation: No electrostatic discharge during soldering process
Rapid Heating: Fast heating rate and high welding speed for improved productivity
Precision Access: Capable of welding in narrow areas and for miniature components with minimal spatial limitations
Cost Efficient: Reduced consumable requirements for significant cost savings
Visual Programming: CCD vision system enables simple, intuitive operation
Integrated Optical System: 5-optical-path coaxial achromatic system combines vision, infrared temperature measurement, indicator light, laser, and shadowless light into one unified system
Compact & Flexible: Smaller footprint with simple operation and enhanced flexibility for various applications

This advanced laser soldering machine combines precision temperature control with non-contact operation, delivering exceptional soldering performance for demanding industrial applications while maintaining component integrity and operational efficiency.
